Linx 8840 Spectrum

Less cleaning, more coding .
Revolutionary high-contrast pigmented ink printer. The Linx 8840 Spectrum continuous ink jet printer has been specifically designed for demanding production lines with high-speed requirements. It prints reliably on wire, cable, extruded plastic, glass bottles and jars with white, blue or grey pigmented inks. With smart features, the CIJ printer can be shutdown for up to one month and ready to print reliably on restarte.

LET’S SPEAK FURTHER?

We’ll do everything we can to experience best with us!!
Get In Touch

Key Benefits

Innovative
  • Best-in-class high contrast printer with extended service intervals of up to 8,000 hours or 12 months with a range of Linx pigmented inks, twice that of alternative pigmented printers
  • Patent-pending PureFlow® powerful filtration system purifies ink without losing opacity
  • Premium print quality with patent-pending Vortex® unique mixing tank, ensuring heavy pigment is dispersed for superior marking

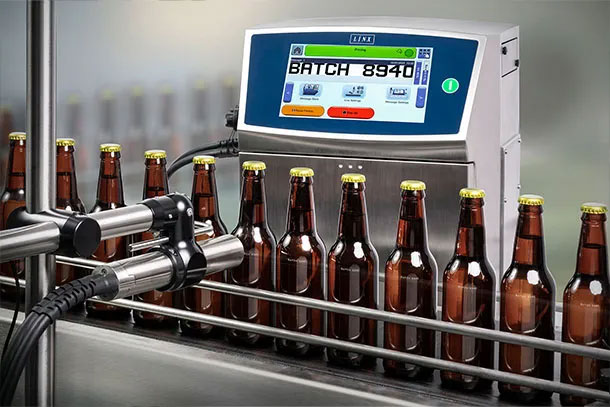

Reliable
  • Linx’s trusted 8000 series for optimum performance, including in extreme environments. Up to one month shutdown with no need to flush on startup
  • Sealed printhead has no delicate parts and typically once a week cleaning, even when running the printer 24 hours a day, seven times fewer cleans in comparison to other pigmented printers
  • AutoFlush zero-waste automatic printheadcleaning system leaves the printhead clean, ready for perfect start-up every time

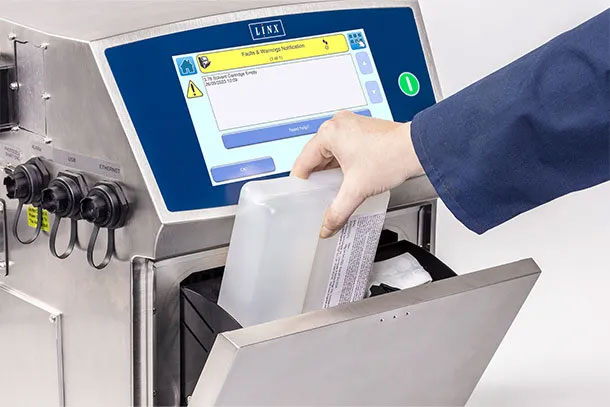

Easty to Use
  • 7 inch easy-to-use touch screen interface, customisable home screen for fast message creation and editing while printing
  • Mistake and mess-free one-touch fluid cartridges
  • Linx PrinterNet® ready for enhanced monitoring and remote control

Linx 8840 Spectrum Video

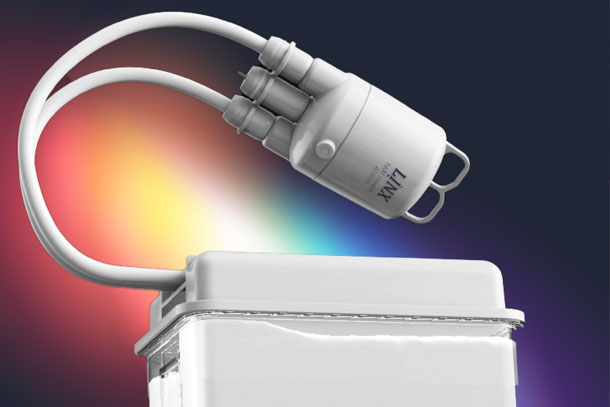

Vortex

Patent-pending Vortex, our latest innovation made specifically for ensuring brilliant white print with brilliant print quality.

Vortex is a robust mixing tank with unique contours to collect the heavy pigment sediment in the ink. The continuous, fast mixer of the Vortex system re-disperses the pigment into the ink delivering a high-contrast, opaque print every time.

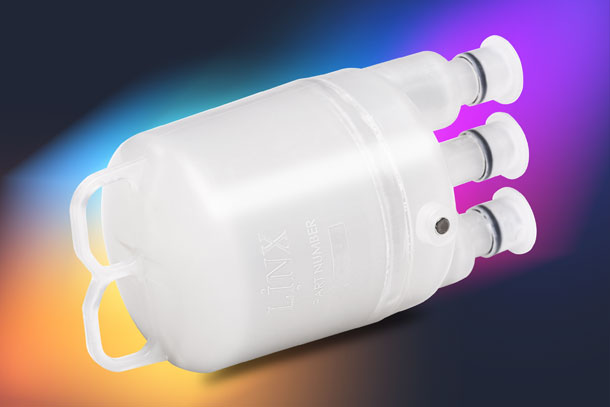

PureFlow

PureFlow is another patent-pending innovation – a specialist filter designed to purify heavy pigmented ink, without losing any colour.

PureFlow is a powerful filtration system which refines all of the ink in the Spectrum tank, a continuous filtration reduces the risk of blockages in the printhead, and delivers high-contrast, quality marking with every code.

Applications for the 8840 Spectrum

Linx 8840 Spectrum high opacity printer can be used in a number of different industries and on a wide variety of substrates.

The innovations and benefits of the Linx 8840 Spectrum CIJ printer are particularly suited to Wire and Cable, Extrusion, Automotive, and Food and Beverage applications.

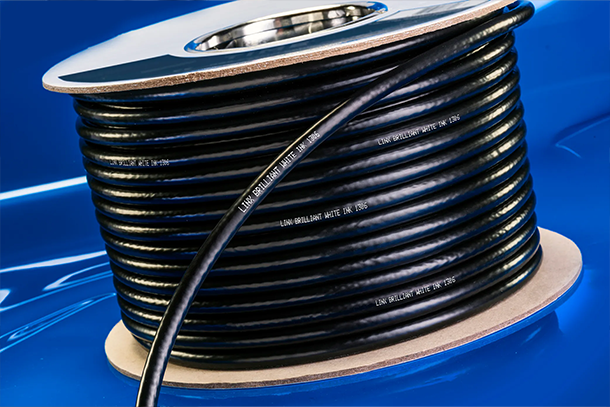

Wire and Cable

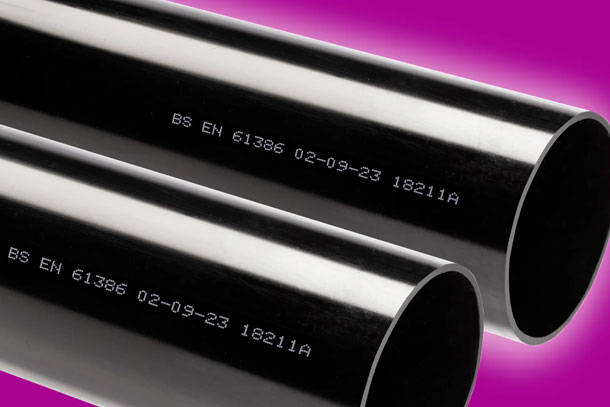

Extrusion

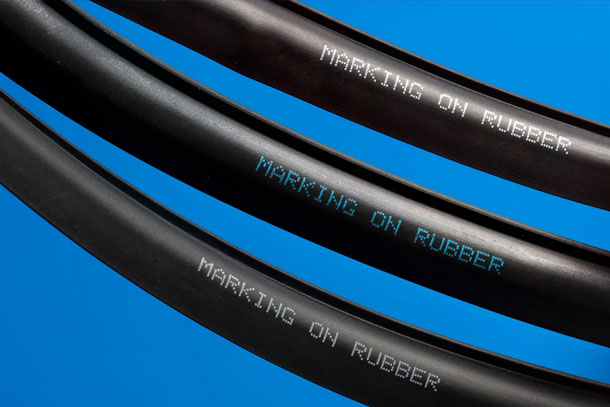

Automative

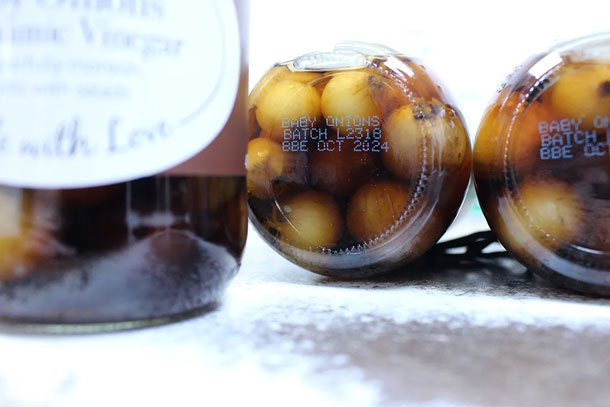

Food Beverage

Linx 8840 Spectrum

Datasheet

Technical Specifications

Printing capability
  • Up to 6 lines of text, symbols, numbers, barcodes
  • Data Matrix and QR codes
  • Character height from 1.8mm to 17mm
  • Maximum print speeds of up to 10m/s
  • Rotated character (‘tower’) printing
Programming features
  • Screen with icons, drag-and-drop field positioning, and zoom function for longer messages
  • Custom date and time editor to create different date formats as required
  • USB port for copy and back-up of message and printer settings, and for easy transfer of messages between printers, and downloading of output and line stoppage logs
  • Message store of up to 1000
  • Real-time output measurement on screen
  • Output and line stoppage logs
  • Screen saver shows real-time on/off target indication
  • Customisable top screen for most frequently used features
Physical characteristics
  • 7” colour touch screen
  • Stainless steel enclosure
  • IP55 (washdown) as standard
  • 2m conduit as standard, with 4m option
  • Weight 23kg
  • No factory air required
  • Ethernet port
